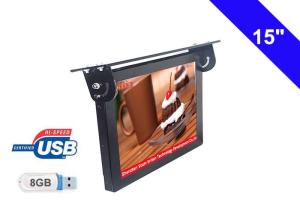

Commercial Bus LCD Display 15 Inch With Ceiling Mounted Installation
1, Main Features :
1, Special technical enhancements to cope with vehicle usage, such as electric voltage fluctuation when starting, vibration and jolting when driving, etc.
2, Professional mounting kits (ceiling mount or wall mount) for firm installation on bus and other vehicles. Angle of inclination is adjustable.
3, Industrial-grade design, heavy-duty build for non-stop loop-playing video, audio and picture 24/7/365.
4, Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card ; no need to use a laptop.
5, Timer: the player powers on / off automatically every day at your pre-set time.
6, Anti-theft device effectively prevents the player and memory card from being stolen or misuse in public place.
7, No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
8,Built-in 15 inch (4:3) TFT LCD screen ; metal housing ; plays from CF card and USB flash drive.
9, Output: 2 pieces built-in high quality stereo speakers.
2, The Product Specification :
| Screen Panel Size |
15" |
| Back light type |
LCD |
| Aspect ratio |
4 : 3 |
| Resolution |
1024 X 768 |
| Visible Area(mm) |
304 X 228 |
| Dot Pitch |
0.297(H) X 0.297(V) |
| Brightness |
300nits |
| Viewing Angle |
70/70/65/65° |
| Contrast Ratio |
1000 : 1 |
| Number of colors |
16.7M |
| Response Time |
8ms |
| Input Voltage |
DC 6~36V |
| Power Consumption |
35W |
| Audio Output |
Built-in power amplifier(support 300W outside horn) |
| Life |
60,000hrs |
| Dimension(mm) |
372 X 291 X 51 |
| Net weight |
5.5kg |
| Installation |
Ceiling Mounted |
| Input port |
2 X USB2.0 |
| Storage Media |
Default USB (SD card is optional) |
| Download Media |
Auto copy from USB |
| OSD Language |
English (Option French, Russian, German, Italian, Spanish, Japanese etc) |
| Display Effect |
Support 720P/1080P Full HD Video/ Picture Display |
| Support Video Formats |
AVI, MPEG1, MPEG2,MPEG4,VOB and DIVX(5.0/6.0) |
| Support Audio Formats |
MP3 |
| Support Photo Formats |
JPG |
| Support Doc Formats |
TXT |
| Operating system |
Plug and Play / No windows OS, Auto loop play when power on |
3, Product introduction:
15 inch Bus LCD Display is a LCD Display with an integral media player, Media files are stored and played back from memory card. When you boot the machine up, it would auto read those files (video/photo)from memory card .
Ad content can be created easily via bus lcd display which allow advertisers to combine audio, video, image and interactivity by themselves. Bus advertising screen are used for many different purposes. It helps to engage users and also helps advertisers to gain insight in customer behaviors. Ad contents displayed on the signage is presented in one of the following formats:
A, Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.
B, Images - Scrolling images, usually in the format of digital advertisement posters.
C, Video - Usually in the format of commercial TV advertisements.
4, The Features of Bus LCD Display (Plug and Play Version)
|
Ads updated type
|
USB copy by manual operation |
| Plug-and-Play |
Plug-and-play /No windows OS, Auto loop play when power on |
| Playback Mode |
Repeat one/all, choose to repeat playback one file or all the files |
| Daily timer switch |
Power can turn on/off automatically at the designated time every day |
| Play logs |
Auto generate all detailed play record in memory card |
| Photo slide show |
The interval time can be adjusted, 5s/10s/15s/30s/60s/120s/180s is optional |
| Date-time display |
Built-in Clock and Calendar, After you setting up date/ time, it can show them
|
| Timing function |
It can create five sets of timing periods a day, settable in a week(7 days) with 24hours unmanned management |
| DIY Boot Screen |
User can use any JPG picture files as boot screen, or even video capture |
| Logo Display |
User can make a JPG picture(240X240 pixel) of own logo,the upper left-hand corner
of screen will show this logo when play video or photo.
|
| Playlist Function |
We can offer you playlist software, you can edit those ad files which stored in memory
card, it will automatically play them one by one in the specified order
|
| Scrolling marquee |
You can set up background color,font size and how fast marque scrolling |
| Ads spots |
Some one advertisement(like your company promotion video) can auto insert into the
one which is curently playing video ads,you can set up the interval time,such as 10
minutes or 20minuts
|
| Split-screen |
Free to split screen, many mode to select(options are full screen,two split screens,three
split screens and so on) according to your needs.
|
| Breakpoint memory |
Enabling resumption of playing the present playing content on breakpoint memory which
the machine automatically recorded in case of breaking.
|
| Time Volume |
User can set up different volume at different times, different db volume for morning and night separately, or holidays and special occasions. |
| Anti-theft lock |
It can prevent U disk and broadcast content from theft, At the same time, the content can be encrypted. |
| Scratch-resistant |
Screen surface with ultra-thin, high-transparency toughened glass or acrylic protection layer to protect the LCD screen from artificial damage |
| Installation |
Ceiling Mounted |
